Hydraulic Roller Cadaver Carrier, Tray not Included – JA630
Standard Features

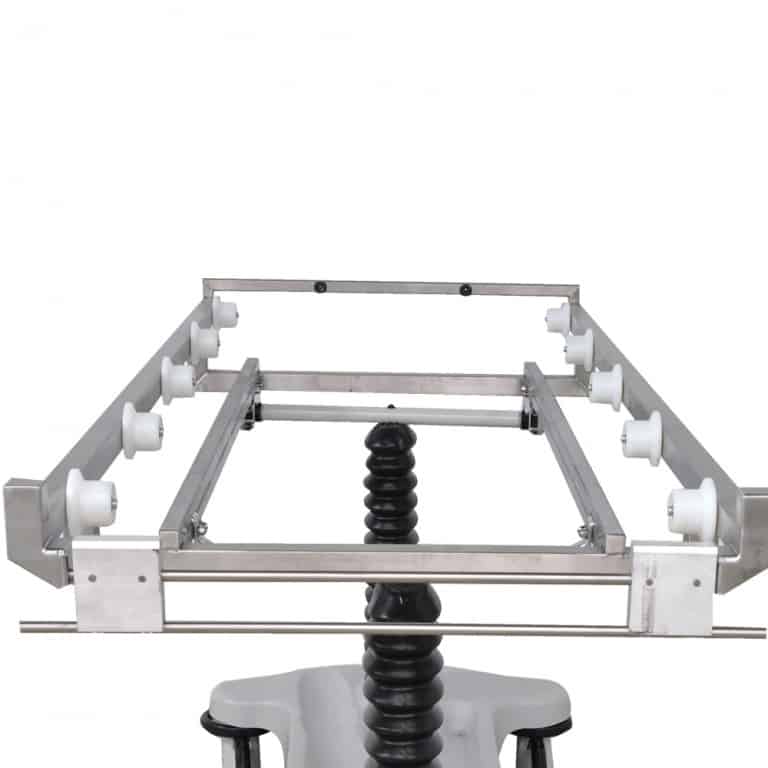

- Conveyor roller transfer style top
- Twin pedestal hydraulics for easy foot activated elevation
- Four heavy duty 8″ casters with total lock
- Tray stop latch
Dimensions
- 79.13″ L x 27.25″ W
Range of Motion
- Elevates from 26″ to 39.5″ (top of rollers)

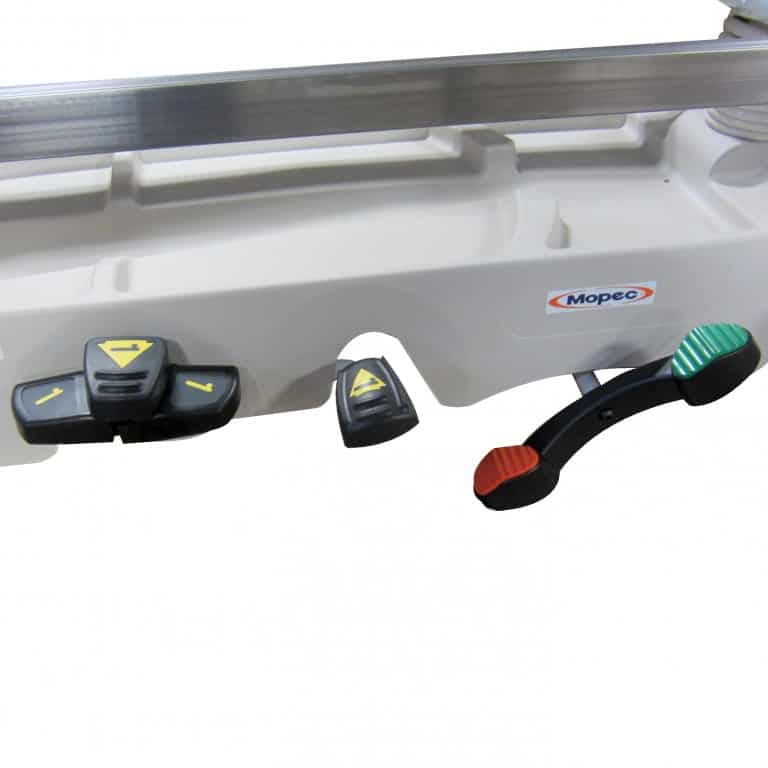

Controls
- Brake lever on both sides and one on end
- Elevating pedals on both sides
Performance
- Weight capacity: Approximately 375 lbs
Compatibility
- 23″ Body tray: JC023 or JC023D
- False frame & cover: JA611
- Roller pallet: JD400
- Lifts: JD301, JD4000, JD501, JD5000, JD5001
Description
The powerful pedal activated hydraulic system allows this cadaver carrier to be easily and quickly elevated to the height of the bed. Dual, side mounted, foot control allows the technician to effortlessly elevate the cadaver carrier to the height of the bed without bending. The Total Lock wheel locking system makes it easy to securely lock the wheels in place for cadaver transfer. Lock one wheel in parallel alignment for easy steering through crowded halls and elevators. The wider body platform makes dealing with heavier bodies easier, yet the transport system can still easily pass through doors and hallways.
