Ensemble Keyboard Tray Arm – AX032

Construction

• Designed to mount into the existing track on the column opposite the sink
• Once installed, track allows arm to be moved up and down the track by loosening two large, knurled knobs, without needing any tools

Capacity

• 5 lbs

Materials

• Keyboard arm components are powder-coated aluminum and ABS plastic for the keyboard tray

Dimensions

• 22.3” L x 33.5” D x 16.1” H

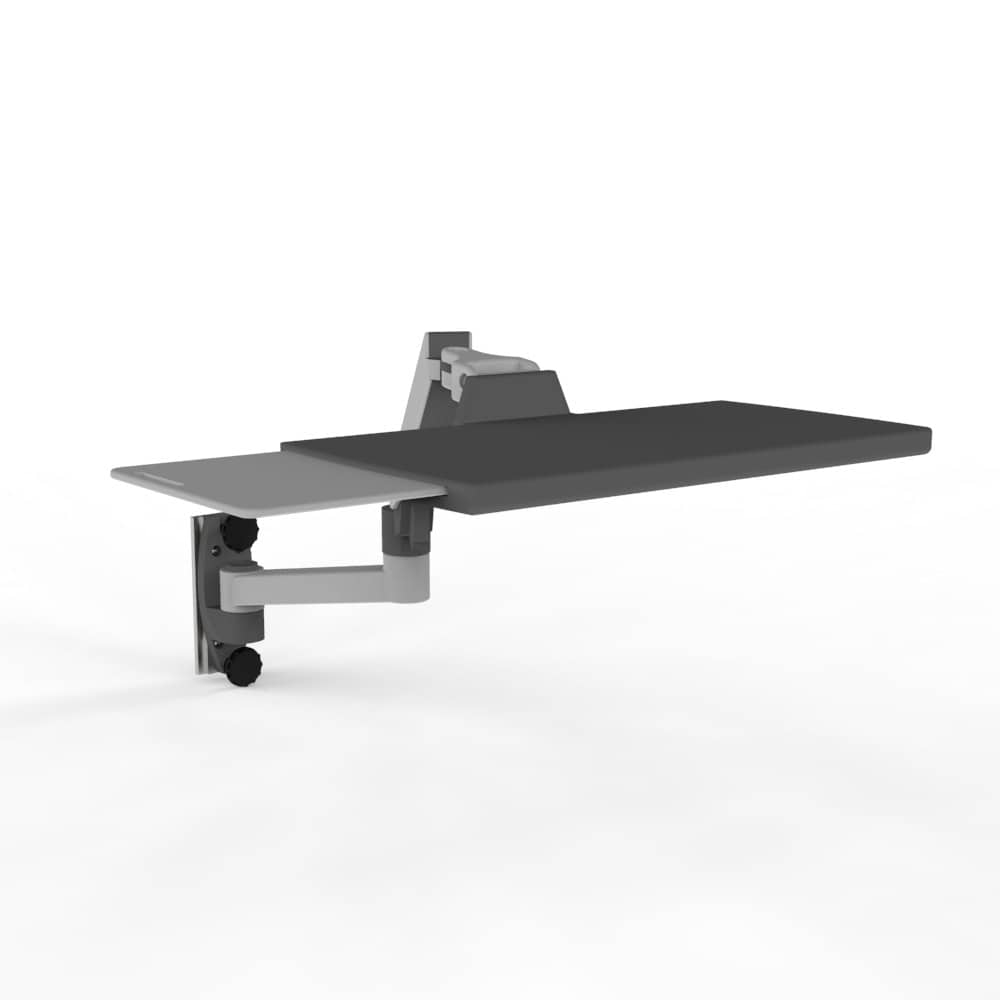

• Keyboard extended: 22.3” L (shown in photo)
• Keyboard not extended: 17.9” L

Performance

• Has several pivot points to articulate up and down, and side to side.
• Can be pulled out when in use, then pushed back when not in use
• Arm has 33” and 180° of sweep, and 13” of lift

Compatibility

• Fits all Mopec Maestro and Maestro Encore grossing stations

NOTE: If ordering with AX034 Monitor Arm, please order AX070 bundle part number.
